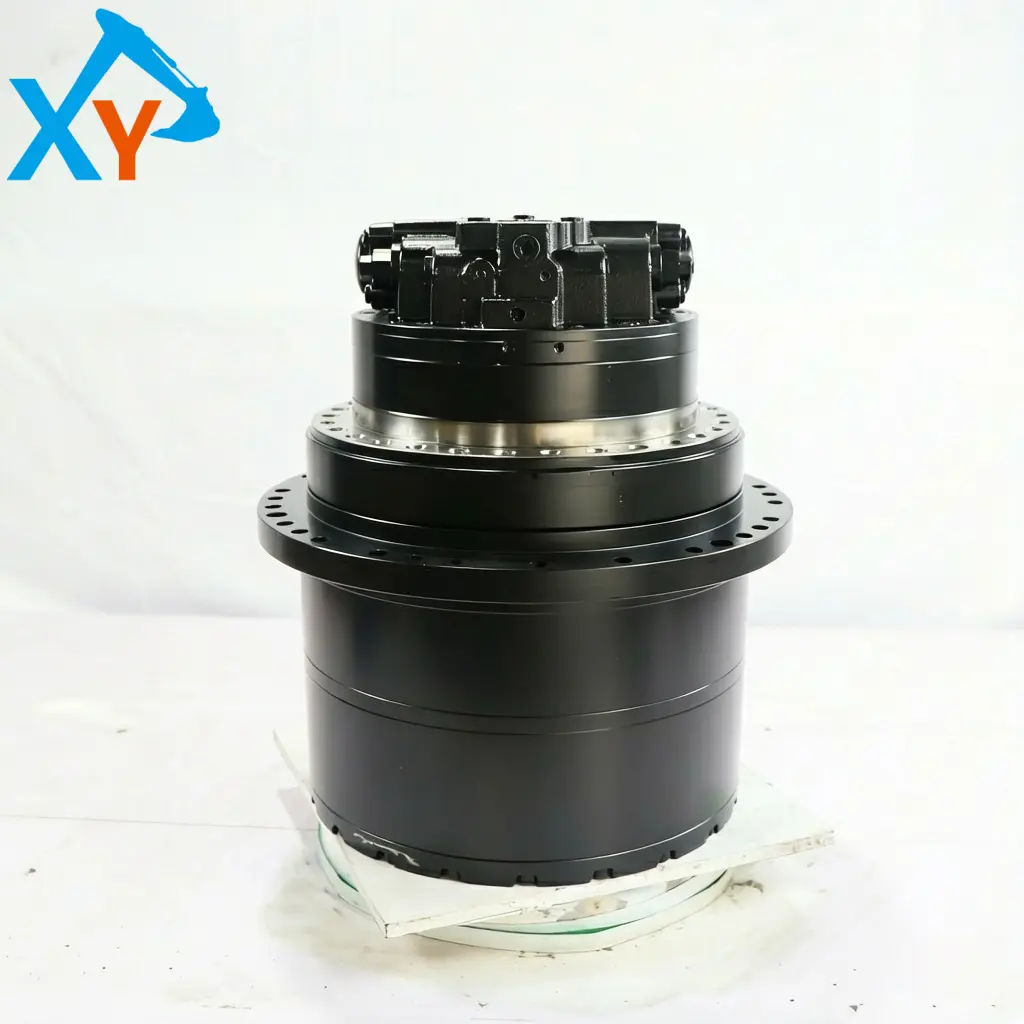

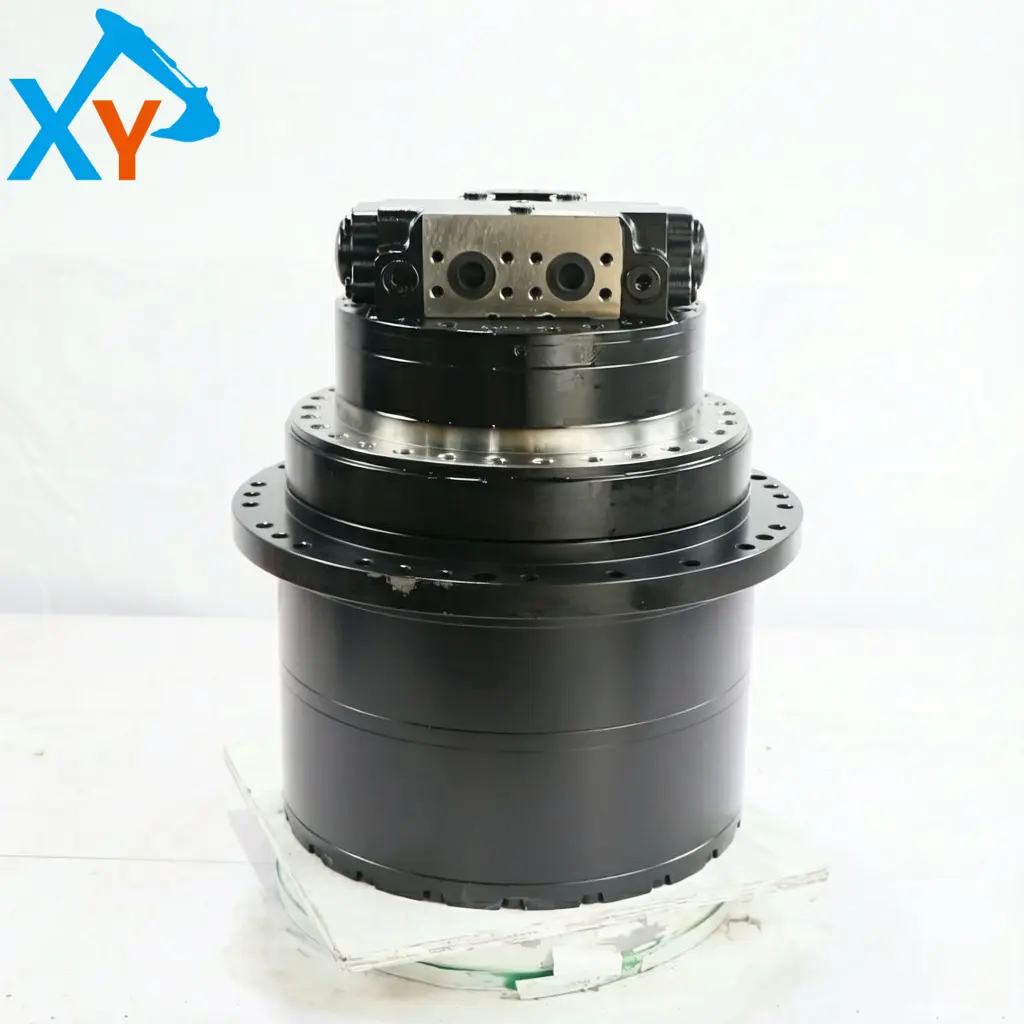

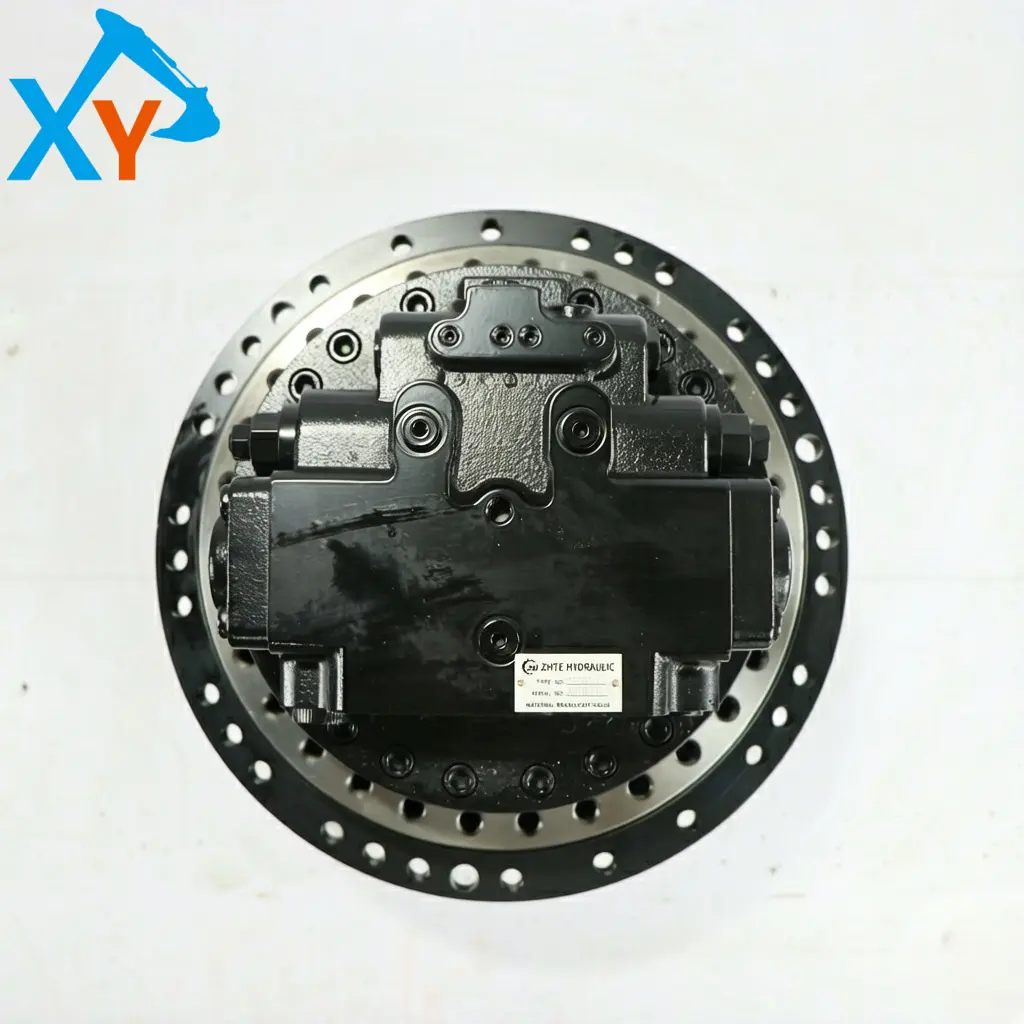

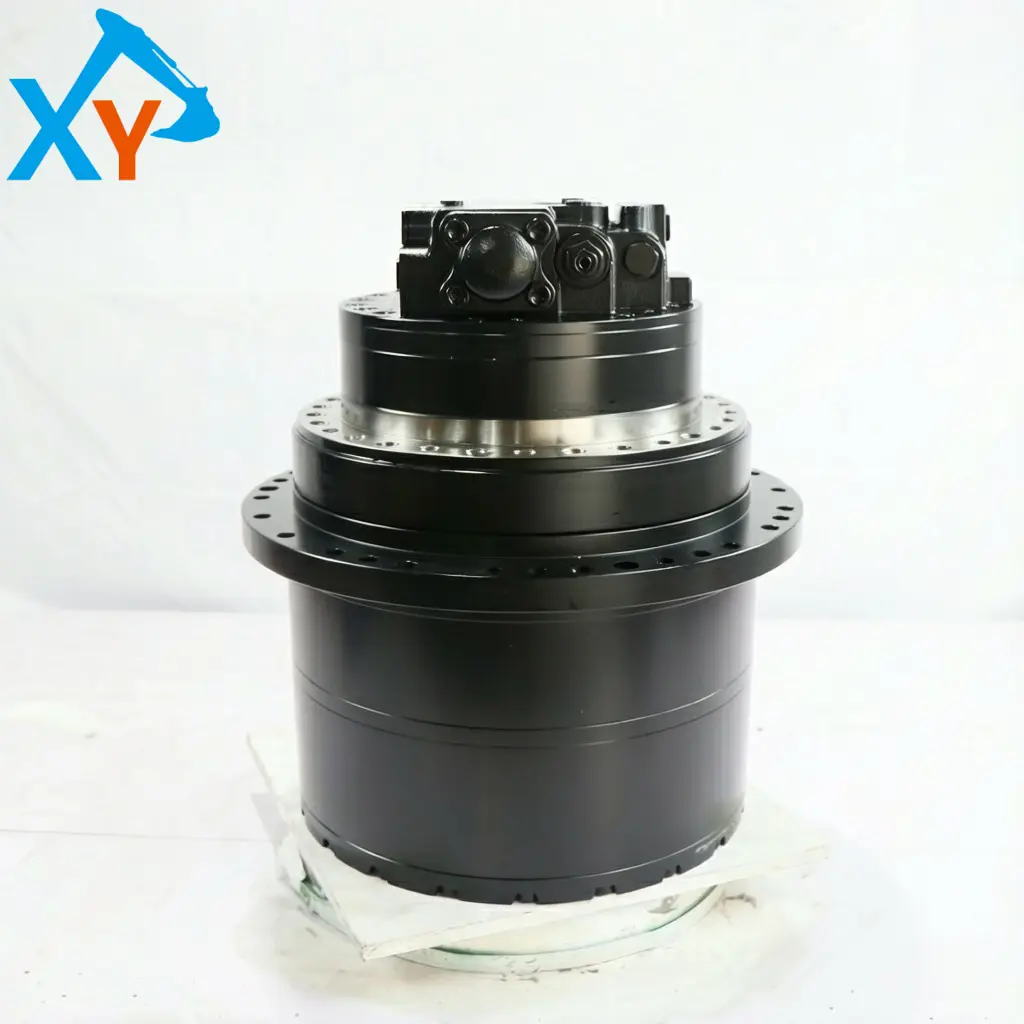

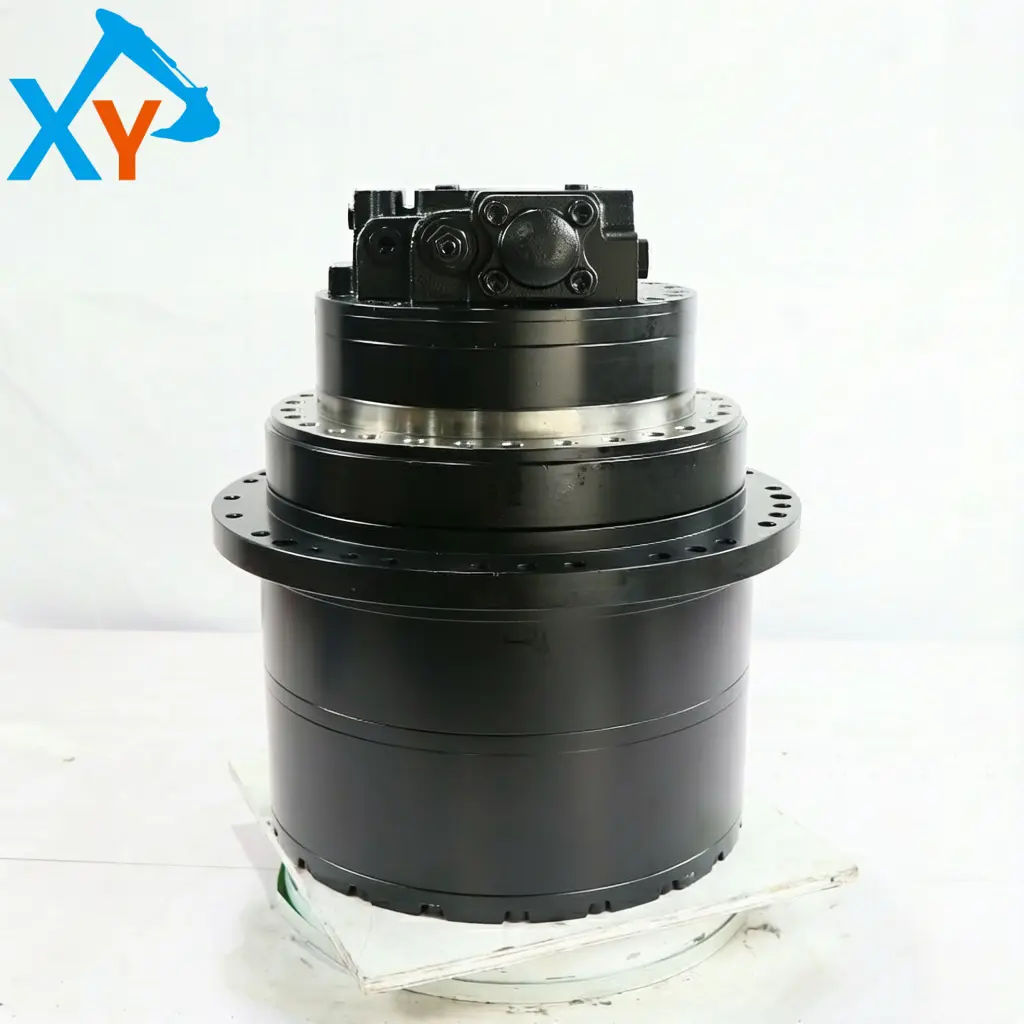

JCB 20/925465 Travel Motor Final Drive Assembly

Place of Origin China/United Kingdom
Brand Name LIRACE/JCB
Model Number JS200 JS205 JS220
Minimum Order Quantity 1 PCS
Price Negotiable price
Packaging Details Wooden case or as required
Delivery Time 5-8 Weekdays
Payment Terms Western Union,T/T
Supply Ability 300pcs /Month
1 (1)
Basic Parameters & Introduction
"This high-precision walking drive assembly (integrating high-voltage walking motor and multi-stage planetary reducer) has a core original part number of 20/925465, fully compatible with and replacing part numbers JRA0264 and JRA0121. This assembly is specifically designed for JCB's core tracked excavators, perfectly matching 20 ton main models such as JS200, JS205, JS220, etc. The product is designed based on first principles to match heavy-duty transmission gears with power output, ensuring absolute certainty of walking output torque. The physical dimensions of the packaging are approximately 560mm × 560mm × 620mm, with an overall net weight of approximately 195kg. The original factory standard position is connected, and the parameters are tightly fitted, directly replacing the seamless connection.
"
1 (4)
Maintenance Tips
"Daily inspection (every 10 hours): Before starting work, it is mandatory to inspect the surroundings of the drive wheel, check the floating oil seal and motor pipe mouth, and eliminate any trace leakage hazards.

First oil change (100 hours of operation): After the new assembly gear has run in for 100 hours, the walking gear oil in the gearbox must be forcibly drained and replaced, and the initial metal debris must be removed.

Regular hard replacement (every 1000 hours): High quality heavy-duty gear oil (such as SAE 80W-90) must be thoroughly replaced every 1000 hours of operation (or up to 1 year). In harsh working conditions such as water immersion, mud or mining, the oil change cycle needs to be forcibly shortened by 50%."
1 (5)
Installation Tips
"Extreme cleaning and alignment: Before installation, the mounting surface and threaded holes of the frame must be thoroughly cleaned to ensure that there are no rust or foreign objects. When using high-strength bolts for connection, a torque wrench must be used to strictly tighten symmetrically and cross according to the original factory's specified torque.

Hydraulic pipeline restoration (core pit avoidance): Do not connect the high-pressure oil pipe to the motor drain pipe (Case Drain) incorrectly. Before starting, it is necessary to ensure that the motor housing is filled with clean hydraulic oil to prevent physical erosion of the internal plunger of the walking motor due to lack of oil lubrication at the moment of starting.

Bidirectional testing transition: When the track is in an unloaded state, control the walking motor to run at low speed for 5-10 minutes, exhaust the hydraulic circuit air, and confirm that the gearbox is running without abnormal noise before applying full load to the ground."
Brand China/United Kingdom Brand Name LIRACE/JCB
Model JS200 JS205 JS220 Product Name Final Drive
Part Number 925465 JRA0264 JRA0121 ApplicableBrand JCB
Warranty Period 6-12 months Condition NEW
Standard or Non-standard Standard Type Guarantee We will inspect the products and send detailed pictures to the buyer for confirmation.
Applicable Industries Mechanical Repair Shops, Retail, Construction, Energy, Mining Shipping Method Sea freight, Air freight, DHL/FEDEX/TNT/EMS
