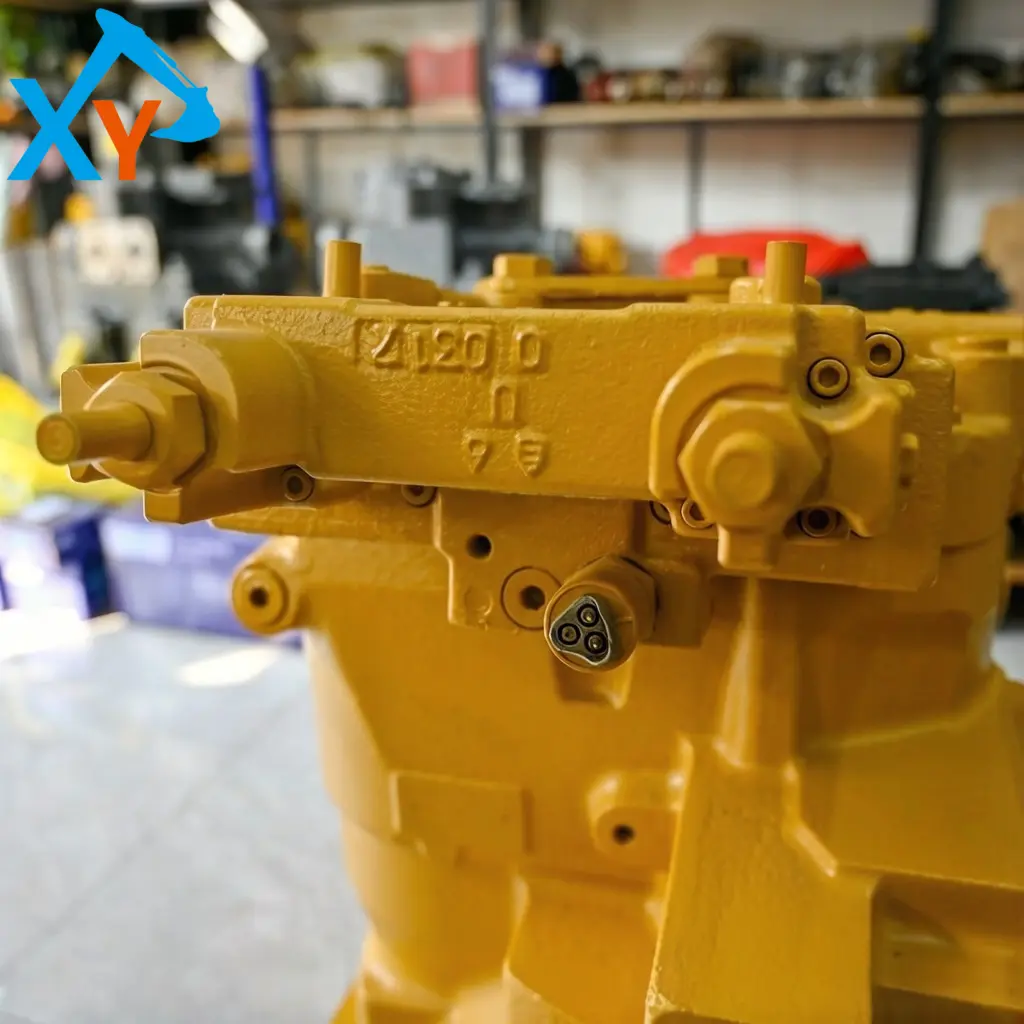

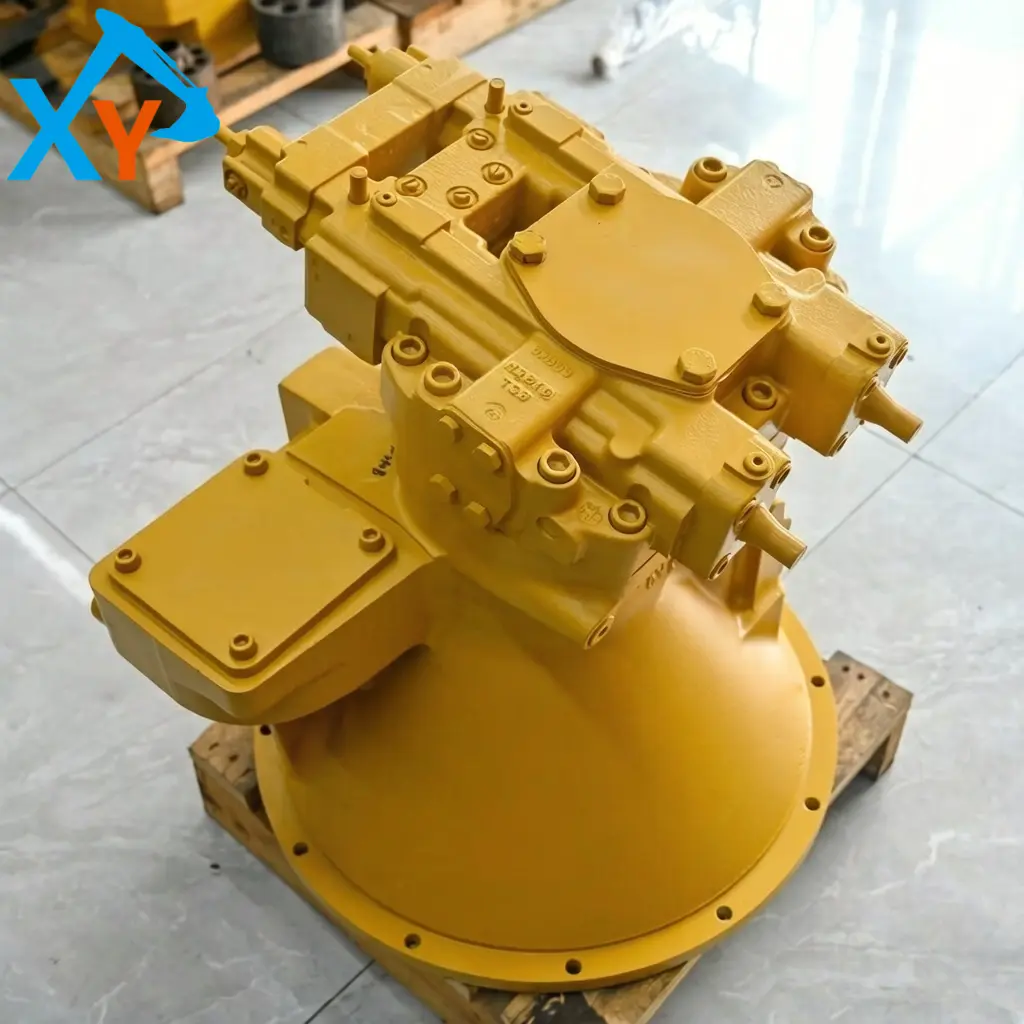

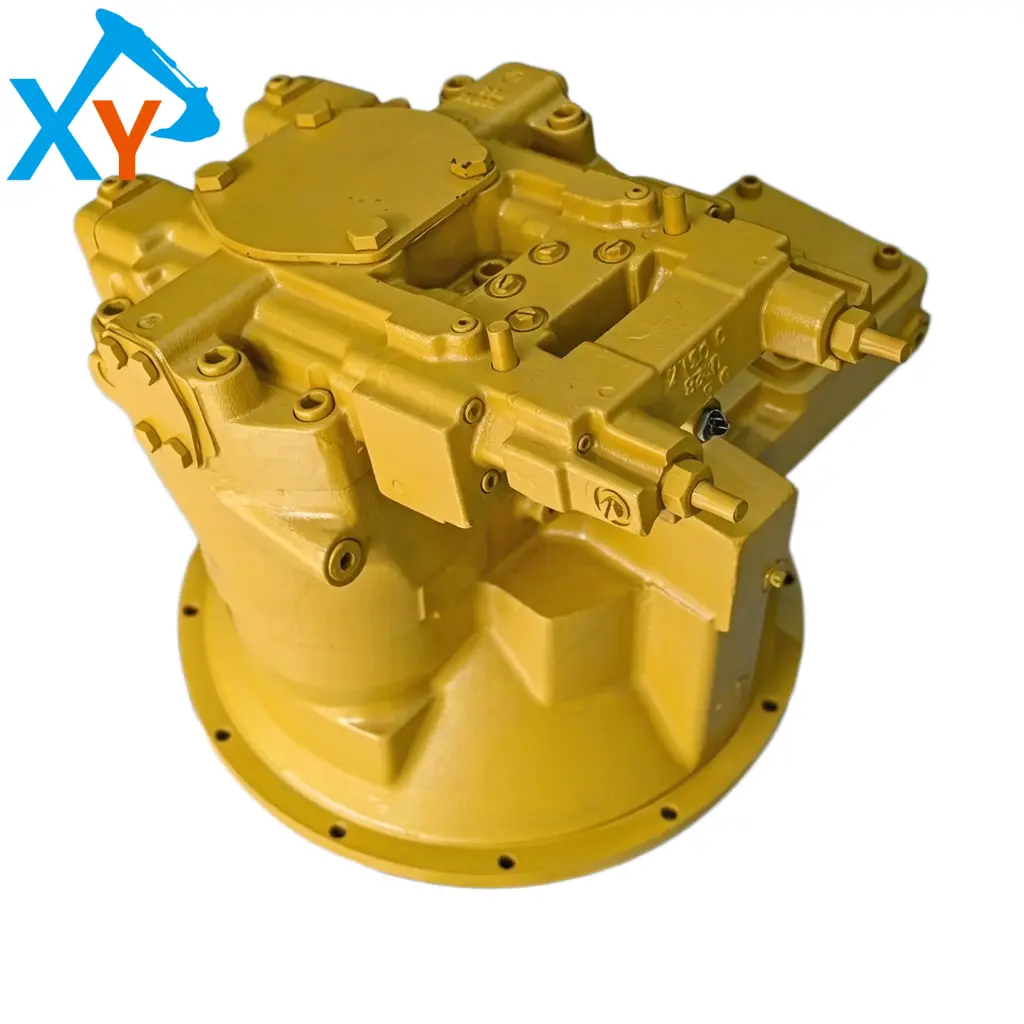

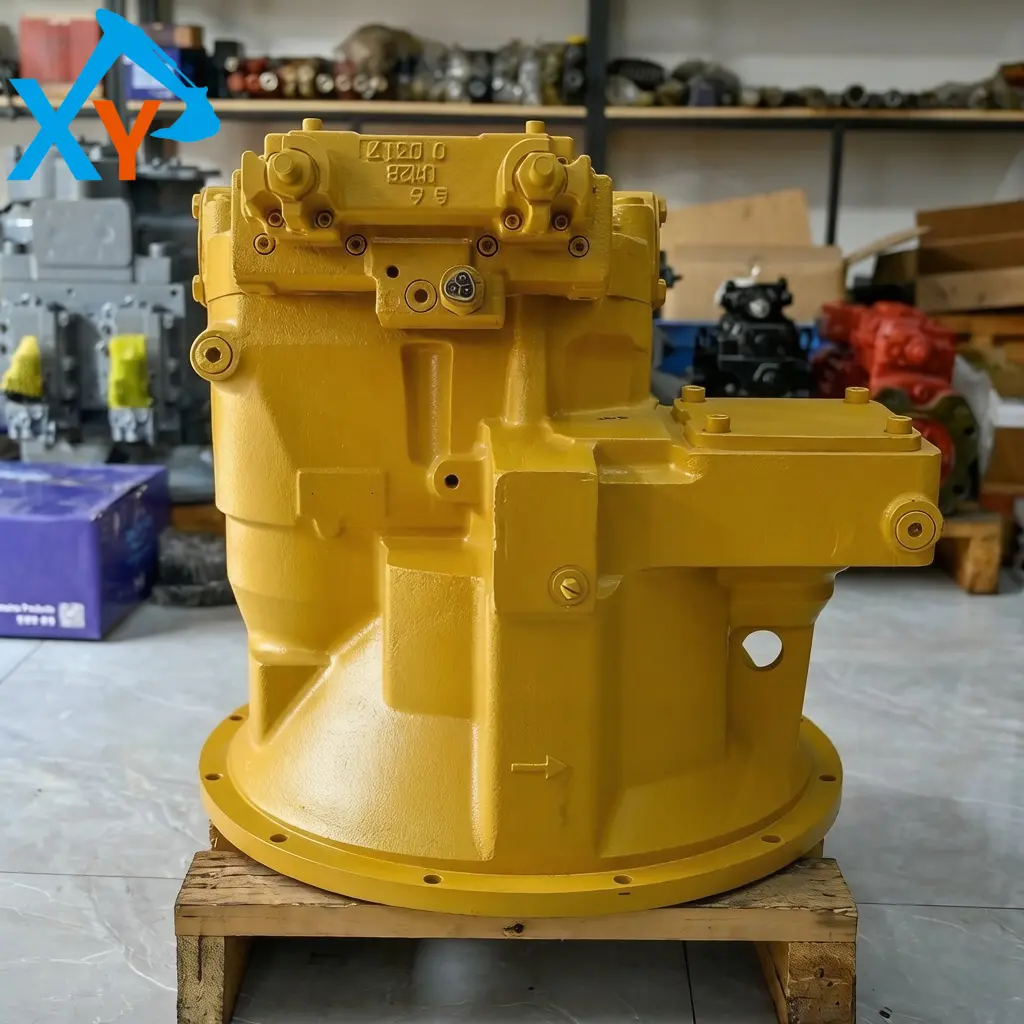

A8VO160 Hydraulic Main Pump for CAT 330B Excavator

This heavy-duty high-precision hydraulic main pump assembly has core original part numbers and cross index numbers 123-2235 and 153-9185. The core adopts Bosch Rexroth's classic A8VO160 dual high-pressure inclined disc plunger pump type. As the power heart of the entire vehicle system, this assembly is specially designed for Caterpillar's classic hydraulic excavator, perfectly matching 30 ton gold generation core main models such as CAT 330B and 330B L. The product is designed based on first principles for ultra-high pressure fluid dynamics optimization, fully bearing heavy flow loads under frequent composite actions, ensuring absolute certainty of power output. The physical dimensions of the product packaging are approximately 790mm × 450mm × 480mm, with an overall net weight of approximately 178kg. The original factory standard position is precisely aligned.

"Extreme cleaning and torque tightening: Dust removal treatment is required for unpacking and lifting environments. All high-pressure oil pipes and feedback signal pipes must be thoroughly cleaned with specialized cleaning agents before being connected to a new pump. Tighten bolts using torque wrenches strictly in accordance with the original factory standard torque for symmetrical and phased cross tightening, to prevent local stress deformation.

Forced oil injection (core pit avoidance): After the main pump is lifted into place and before starting the engine, clean hydraulic oil must be filled from the top oil injection/exhaust port of the main pump. It is strictly prohibited to start dry grinding, otherwise the internal rotating components will undergo irreversible physical erosion within 3 seconds of ignition.

Low pressure transition and exhaust: After the first ignition, the engine must be kept idling and running at low pressure for 10-15 minutes for automatic exhaust and thermodynamic adaptation of the system. The working load can only be gradually applied after the oil temperature and pressure are stable and the bubbles are cleared."
