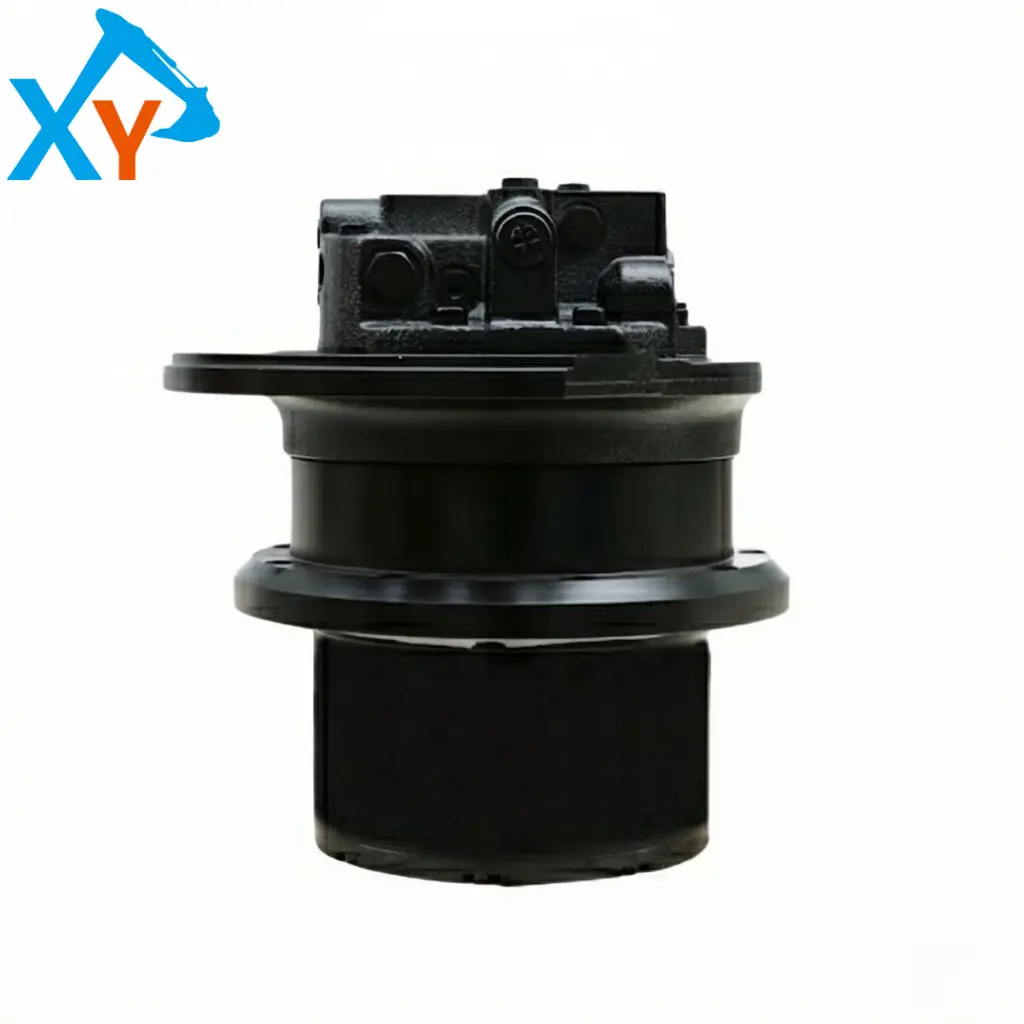

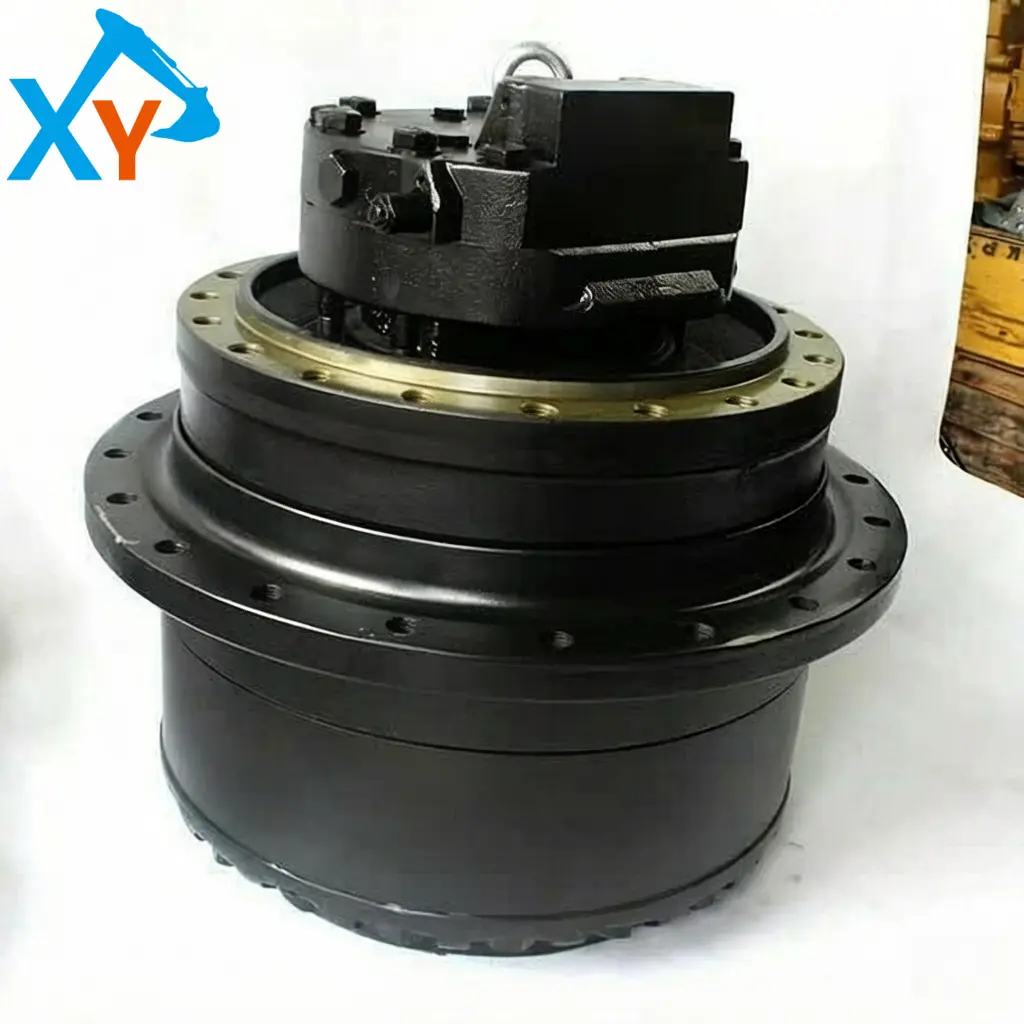

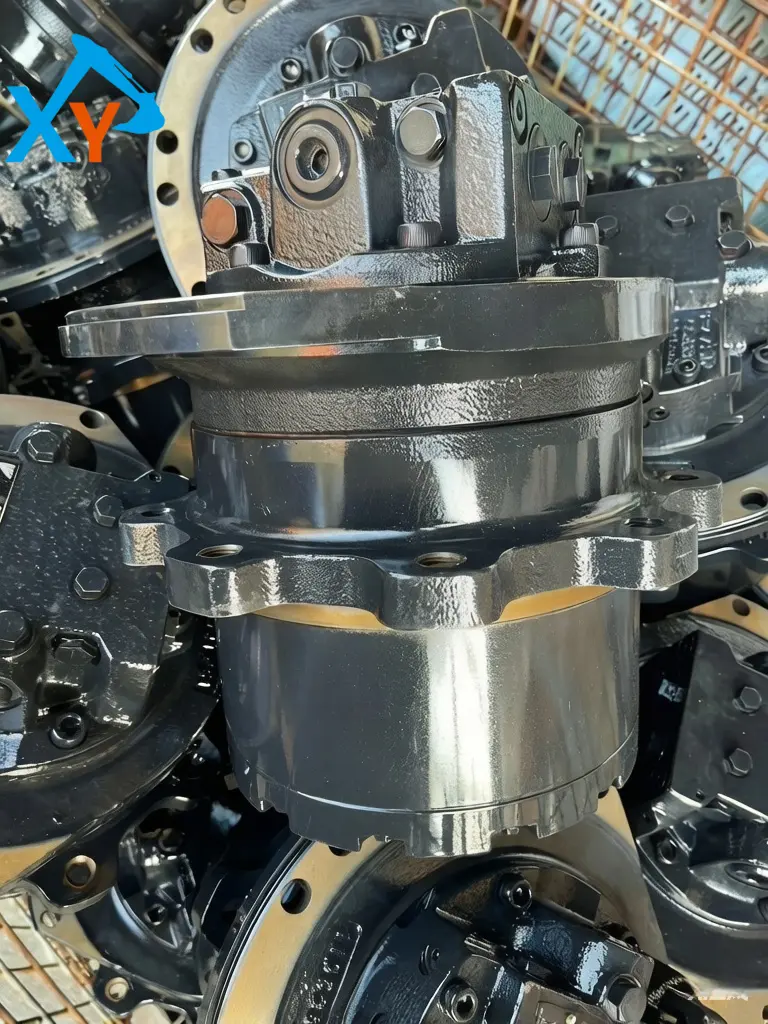

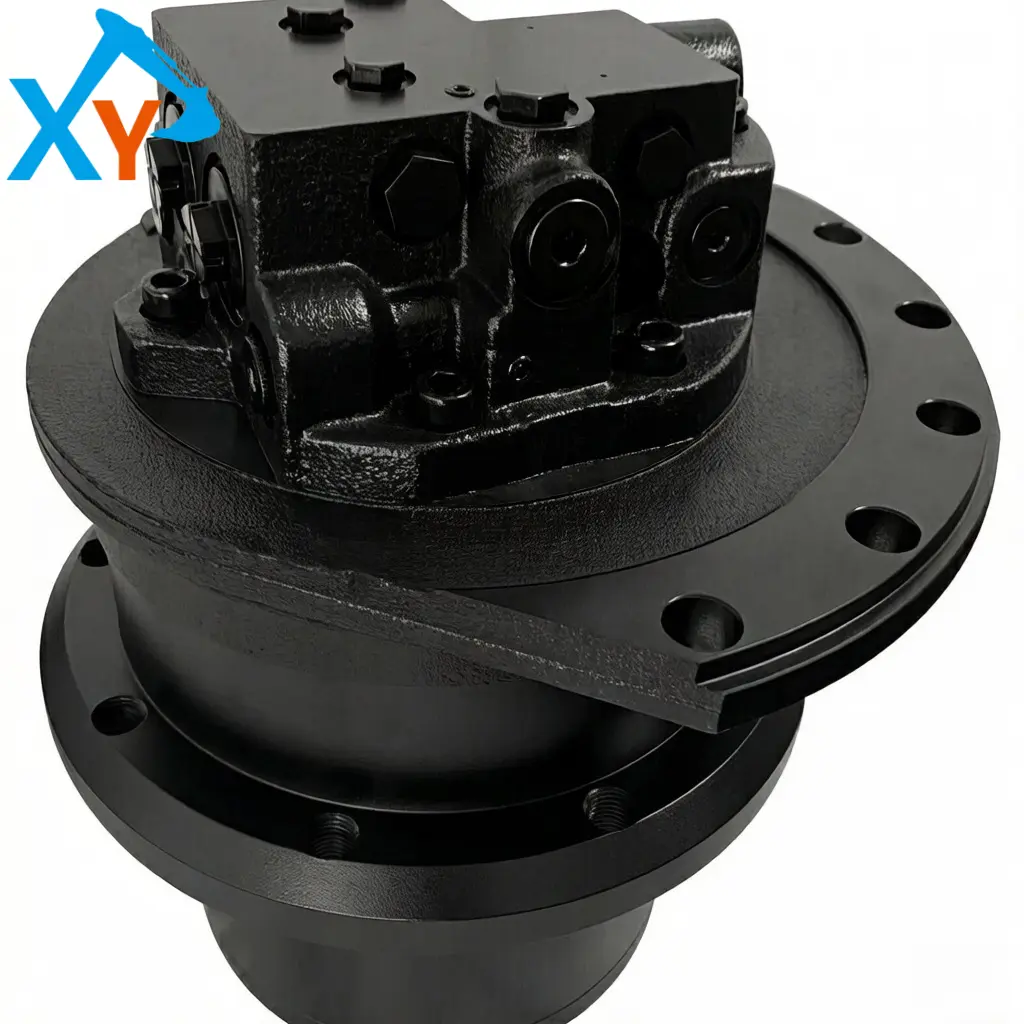

Danfoss BMVT41 hydraulic final drive motor can be adapted to 5~6 ton crawler skid steer loaders

This high-precision hydraulic main reduction motor assembly adopts the Danfoss BMVT41 transmission series as its core. This assembly integrates a high-pressure hydraulic motor and a high torque planetary gearbox, designed specifically for compact heavy-duty equipment, perfectly matched with 5 to 6 ton compact track loaders. The product is designed based on first principles for high-frequency bidirectional driving and high-power density transmission, ensuring absolute certainty of steering and propulsion torque for slip equipment in complex muddy conditions. The physical dimensions of the product packaging are approximately 460mm × 350mm × 360mm, and the overall net weight is about 56kg. The standard position is precisely docked.

"Extreme cleaning and torque alignment: Before installation, the hydraulic pipe mouth and frame base surface must be thoroughly cleaned. All high-strength fastening bolts must be tightened using torque wrenches, strictly following the original factory standard torque for symmetrical and phased cross tightening to prevent local shear stress.

Motor forced oil filling (core avoidance pit): Do not connect the wrong drain pipe (Case Drain) when connecting hydraulic pipelines. Before starting the entire machine, clean hydraulic oil must be filled from the air release/oil injection port on the top of the deceleration motor housing. Dry grinding and starting are strictly prohibited, otherwise the rotating components will be physically eroded within 3 seconds of ignition.

Idle micro motion transition: Support the equipment to suspend the track, control the motor to run at low speed in both forward and reverse directions alternately for 10-15 minutes, exhaust the hydraulic circuit air and closely monitor the gear meshing sound. Only when the thermodynamic state is stable can the work load be applied on the ground."
