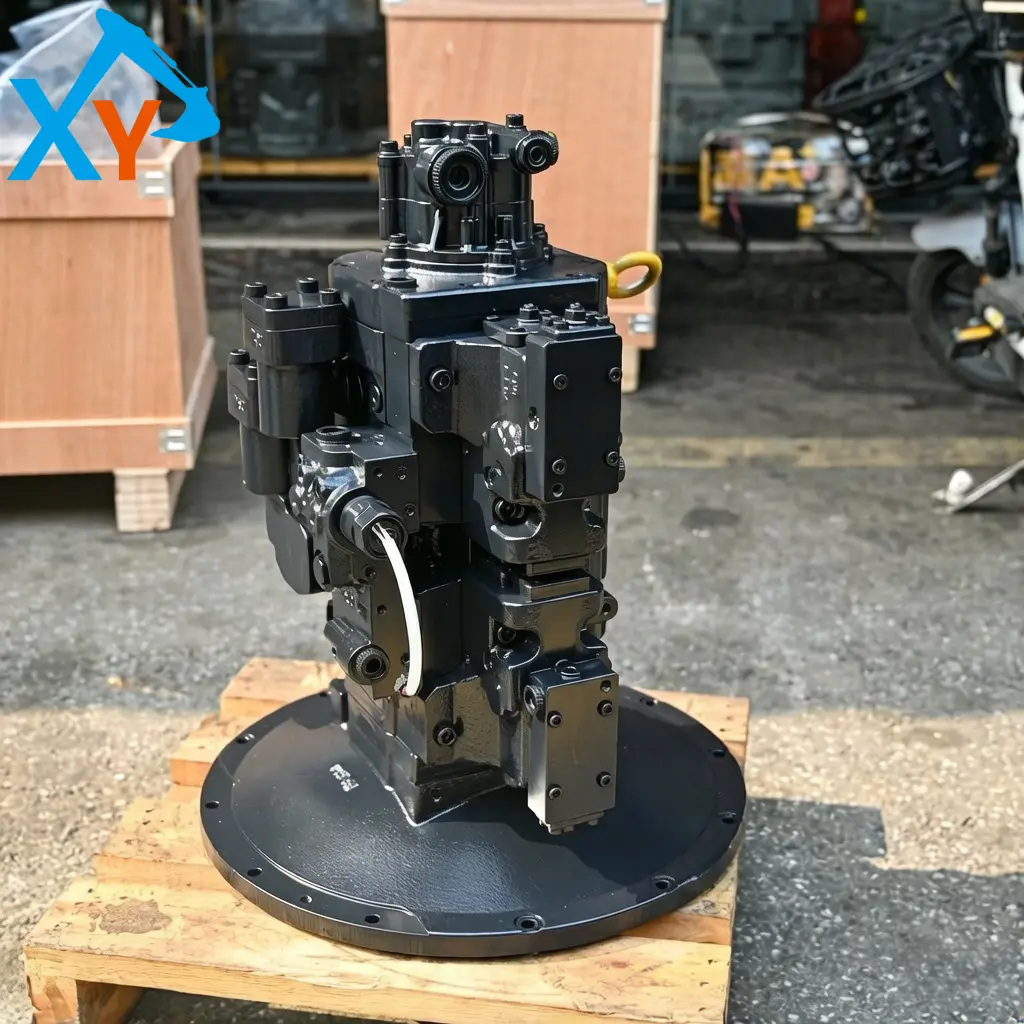

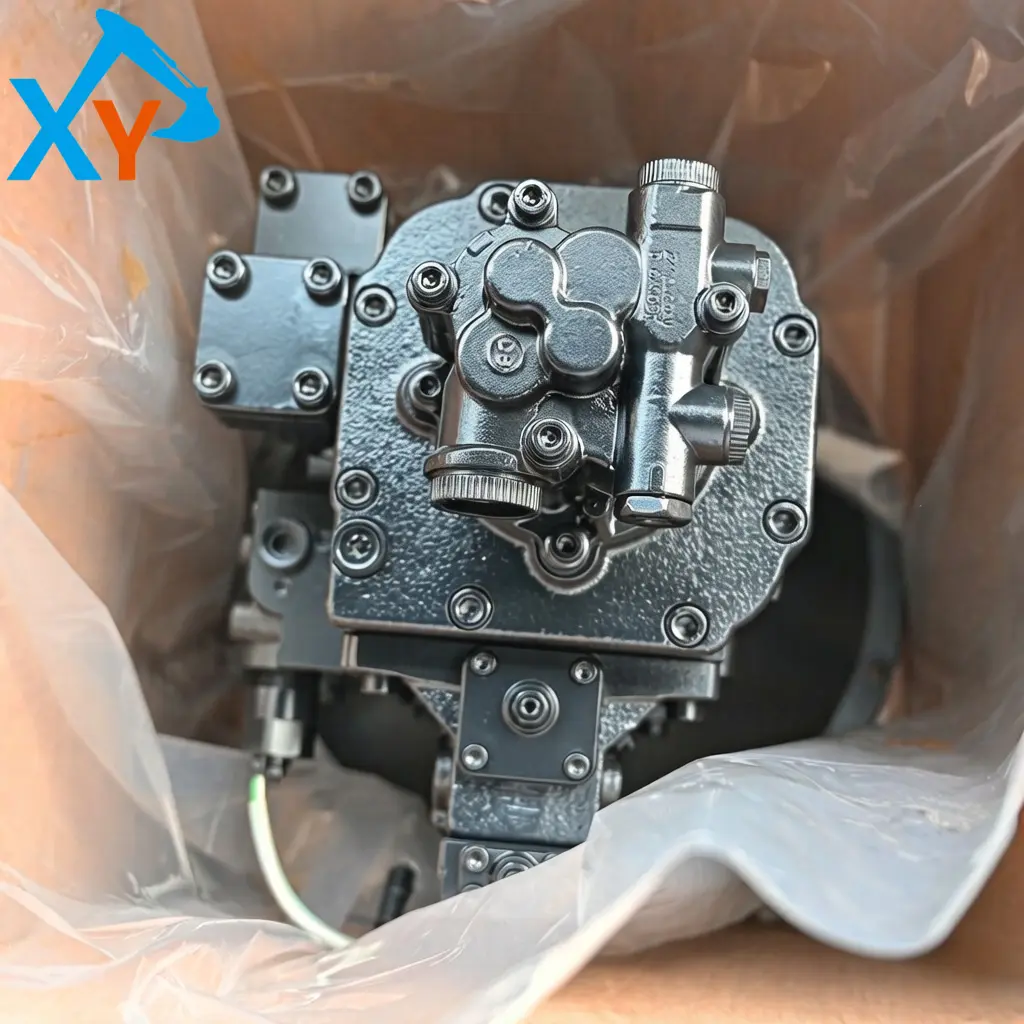

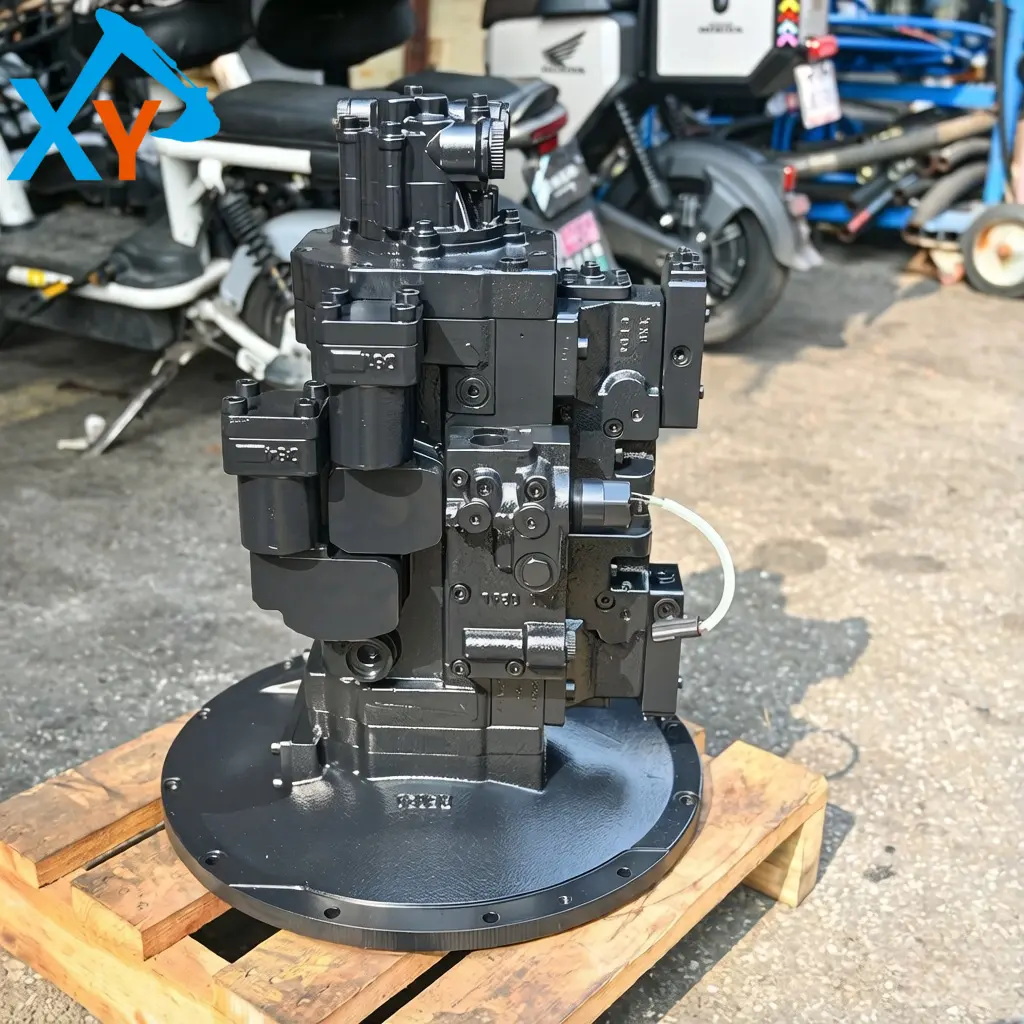

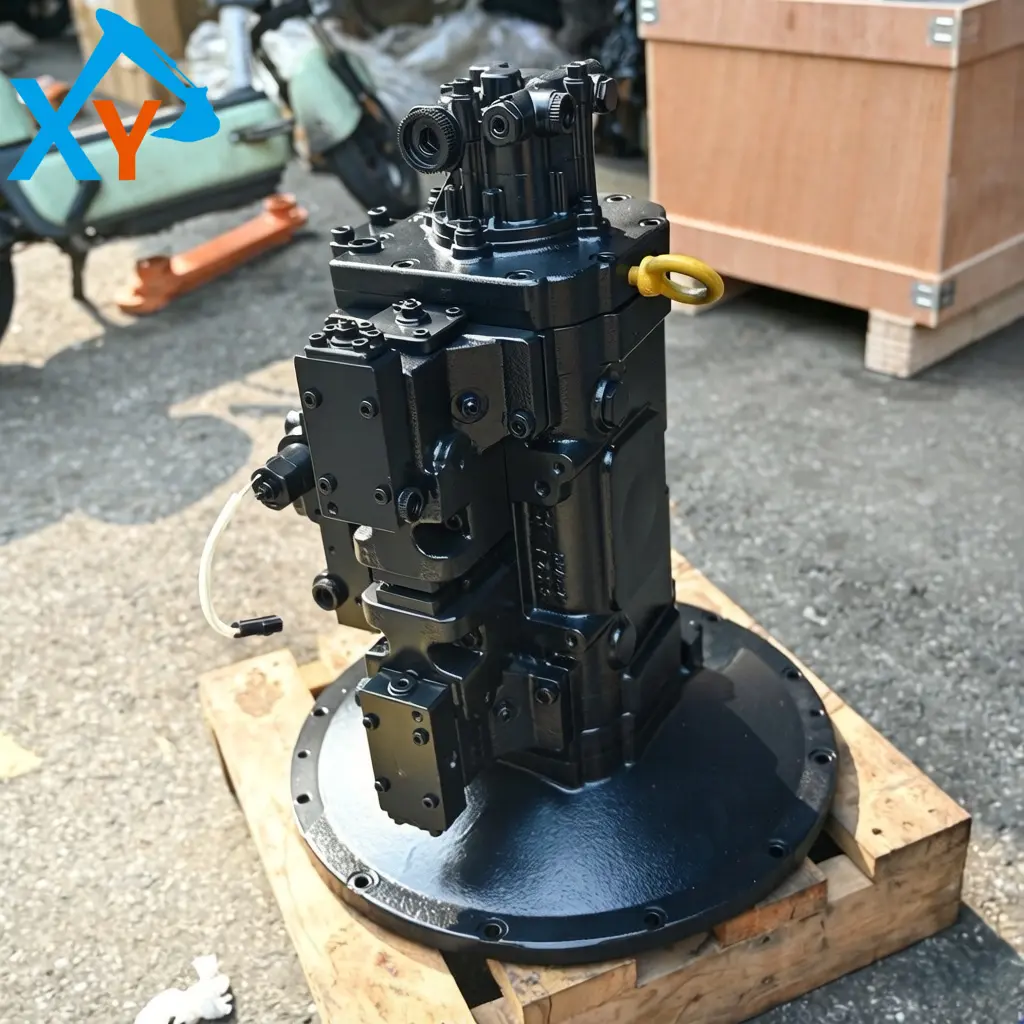

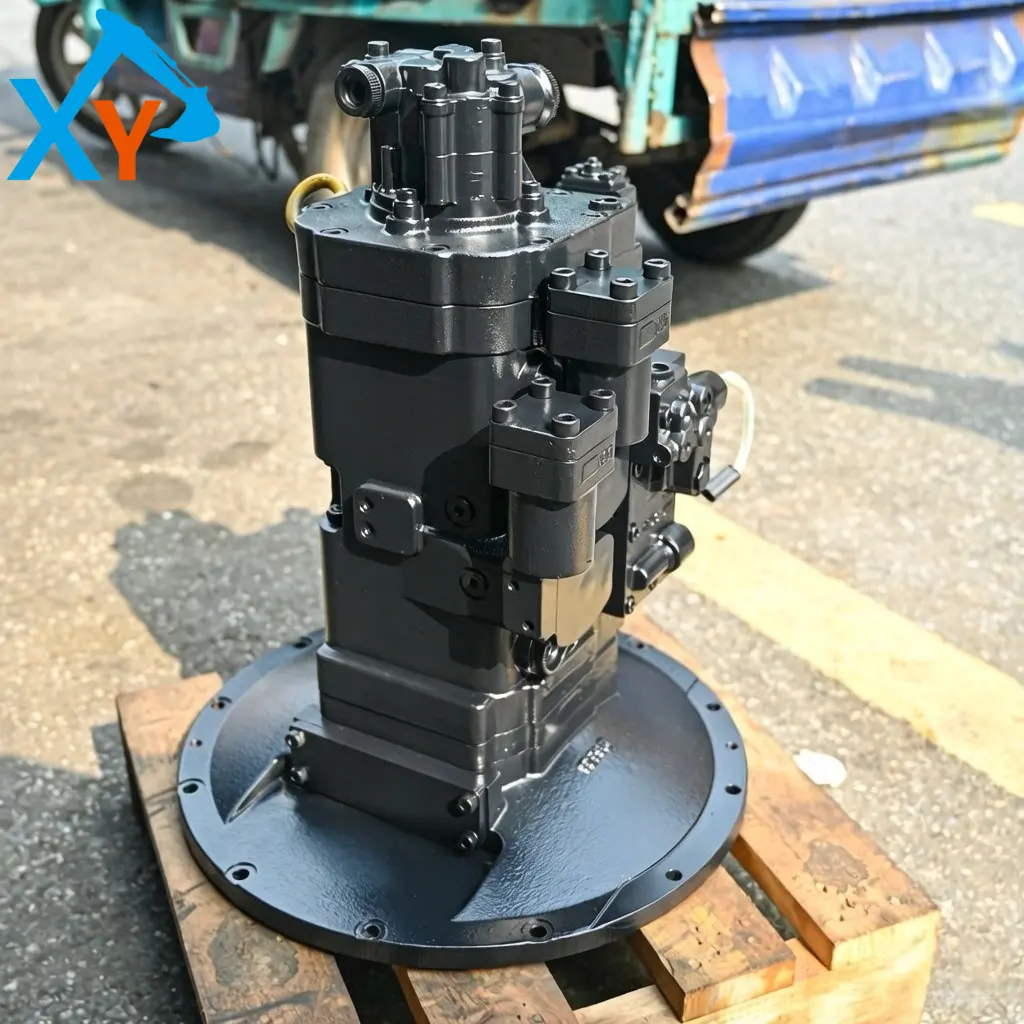

Doosan DX215-9C Excavator Hydraulic Main Pump

Place of Origin China/South Korea
Brand Name LIRACE/Doosan
Model Number DX215-9C DX220-9C DX225-9C DX230-9C
Minimum Order Quantity 1 PCS
Price Negotiable price
Packaging Details Wooden case or as required
Delivery Time 5-8 Weekdays
Payment Terms Western Union,T/T
Supply Ability 300pcs /Month

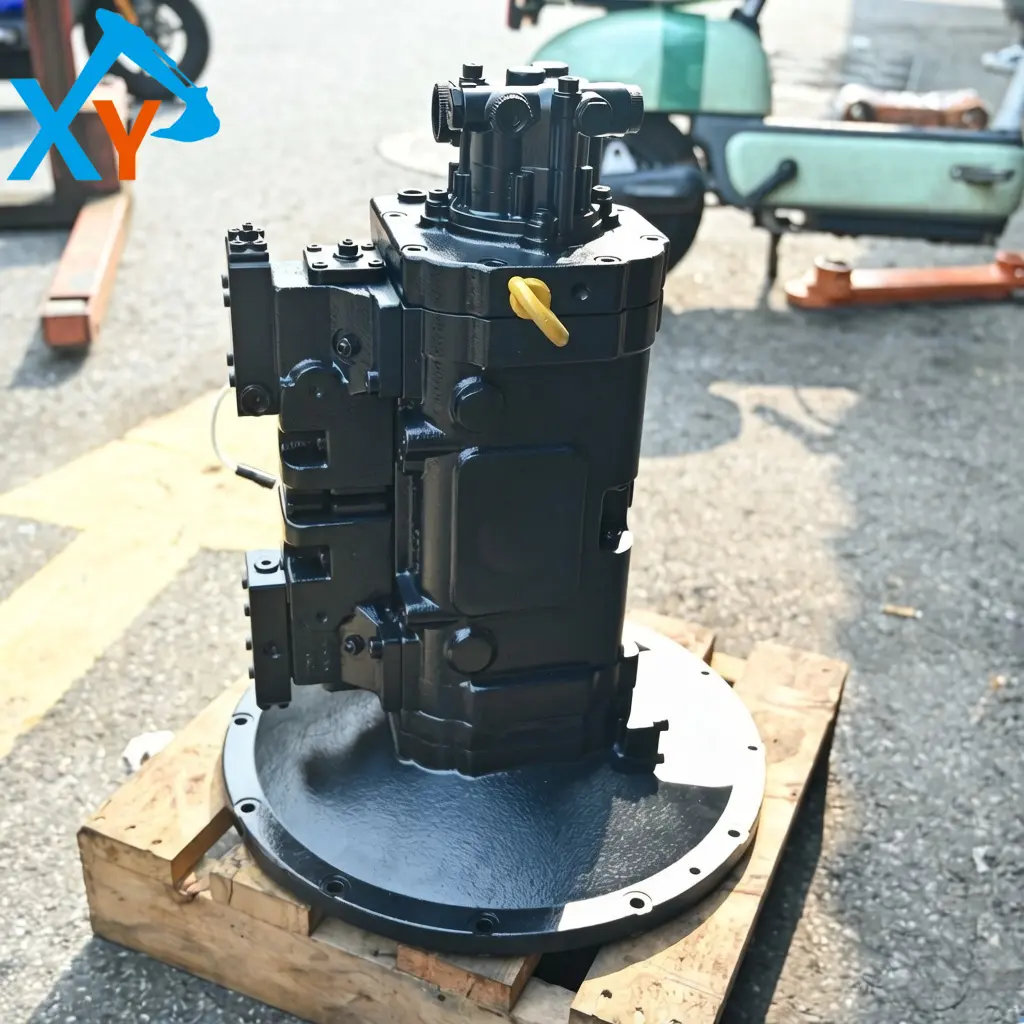

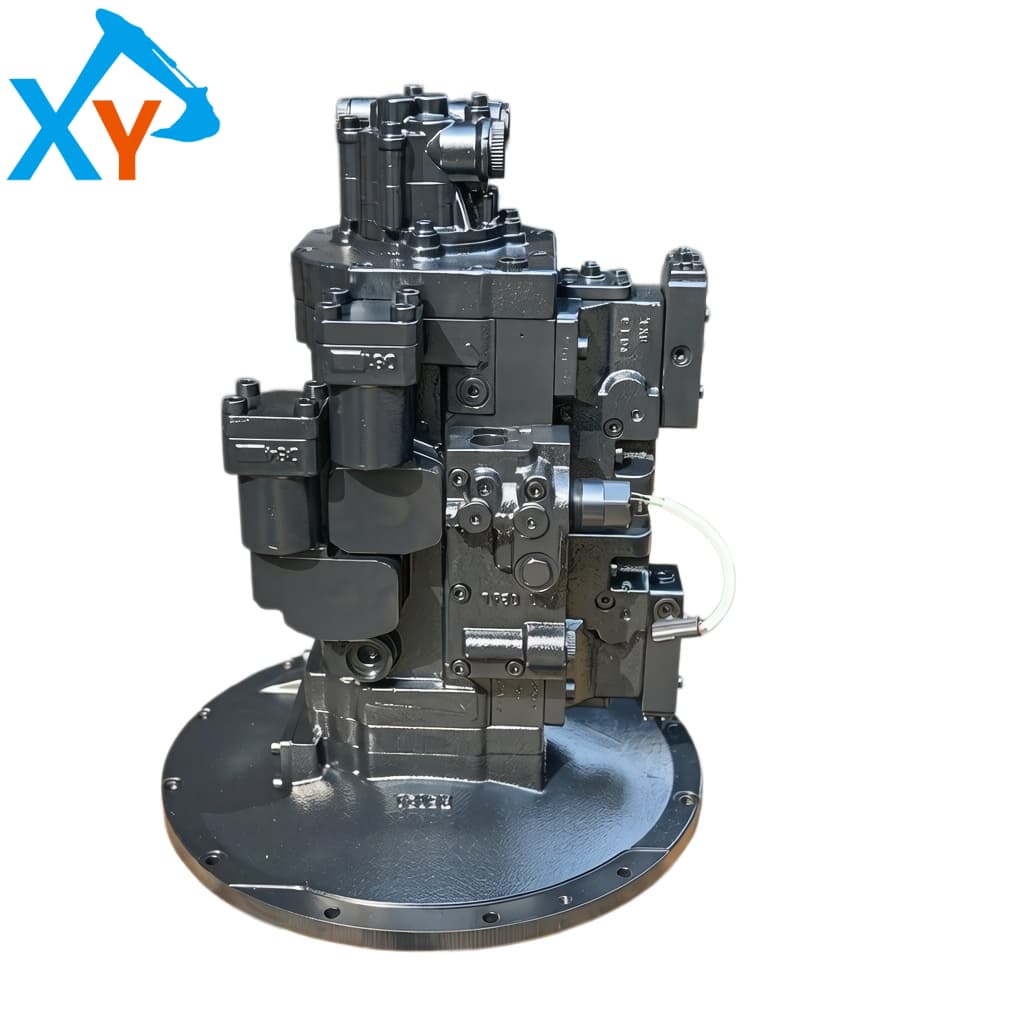

1 (1) (1)
Basic Parameters & Introduction
"This high-precision hydraulic main pump assembly (double plunger pump with pilot gear pump) has a core original part number of 440914-00520C and is fully compatible with replacement part number 400914-00529. This assembly is specially designed for the Doosan/Hyundai 9C series excavators, perfectly matching medium-sized core models such as DX215-9C, DX220-9C, DX225-9C, DX230-9C, etc. The product is optimized for fluid mechanics based on first principles, ensuring absolute certainty of high-pressure and high flow output. The physical dimensions of the packaging are approximately 720mm × 410mm × 450mm, with an overall net weight of approximately 145kg. The original factory standard position is connected, and the parameters are tightly fitted.
"

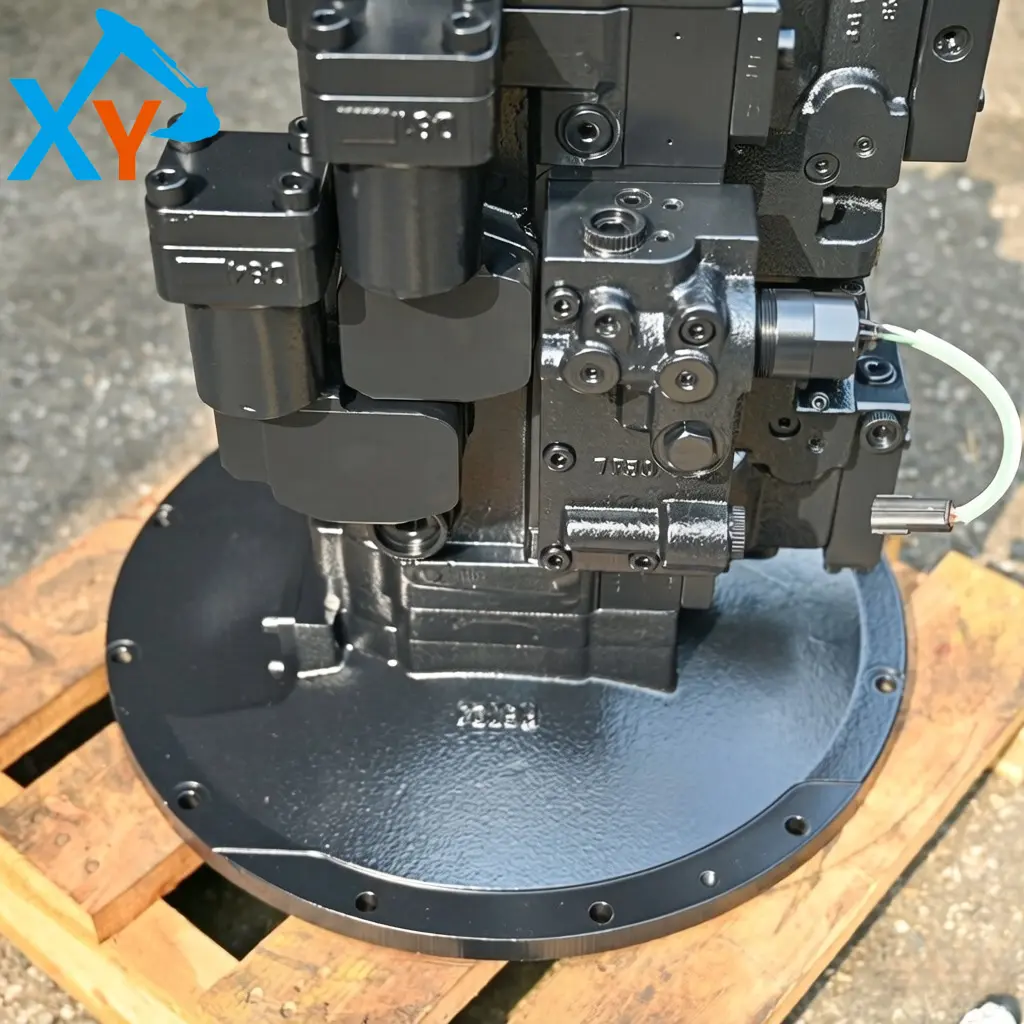

1 (2) (1)
Maintenance Tips
"Daily inspection (every 10 hours): Before starting work, it is mandatory to check the hydraulic oil level and the sealing of pipeline joints to eliminate potential leakage hazards.

First running in period (50 hours of operation): After installing a new pump, the return oil filter and pilot filter must be forcibly replaced.

Regular mandatory replacement (every 500 hours): replace the high-precision hydraulic filter element of the entire vehicle; The oil tank must be thoroughly cleaned and the anti-wear hydraulic oil replaced every 2000 hours (or up to 1 year). If it is under high load conditions such as a crushing hammer, the maintenance cycle needs to be forcibly shortened by 50%."

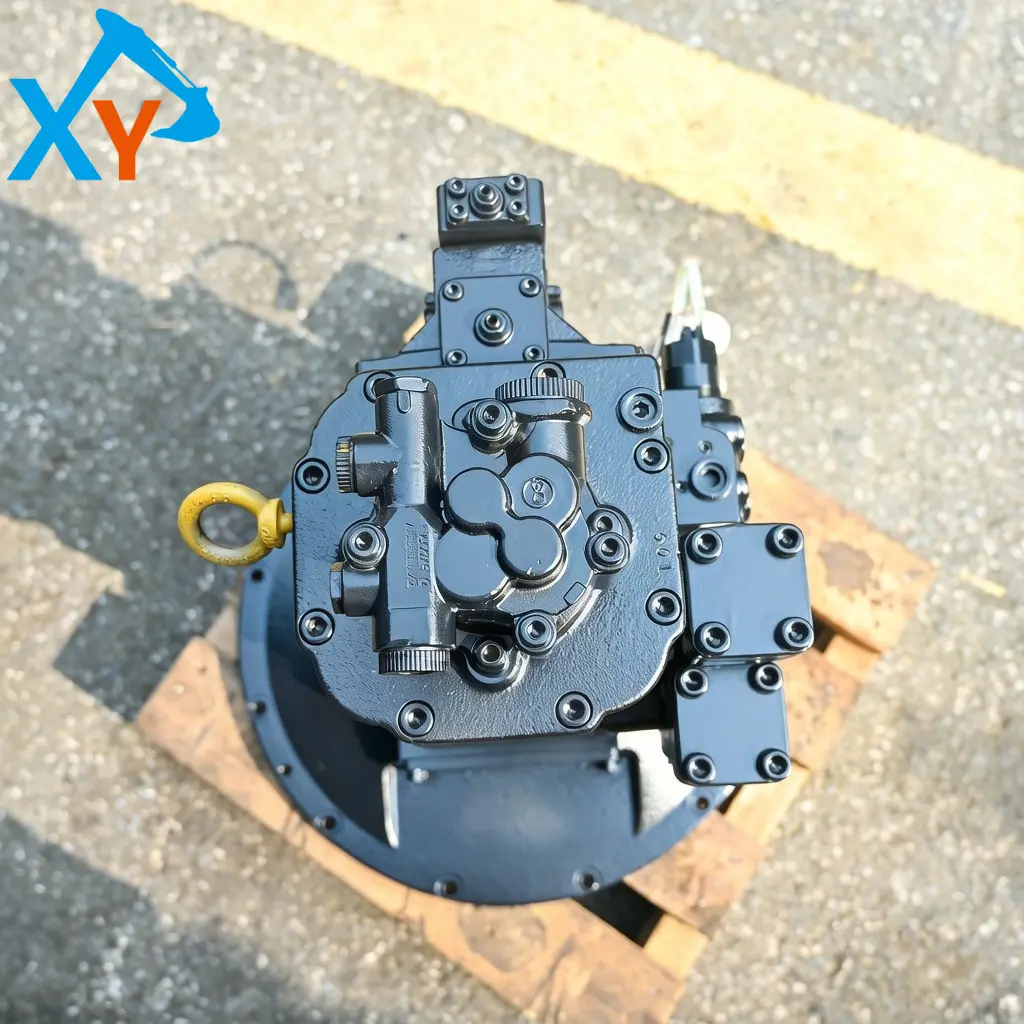

1 (4) (1)
Installation Tips
"Extreme cleaning: Noise reduction and dust removal treatment are required for the unpacking and installation environment. All hydraulic pipeline joints must be thoroughly cleaned with cleaning agents before connection, and foreign objects are strictly prohibited from entering the pump body.

Forced oil filling (core pit avoidance): After installation and before starting the engine, clean hydraulic oil must be filled from the oil filling port on the top of the main pump. It is strictly prohibited to start dry grinding, otherwise the rotating components will undergo irreversible physical erosion within 3 seconds of ignition.

Low pressure transition: After the first ignition, the system must idle at low pressure for 10-15 minutes for exhaust and thermodynamic adaptation, and the working load can only be applied after the oil temperature is normal."
Brand China/South Korea Brand Name LIRACE/Doosan
Model DX215-9C DX220-9C DX225-9C DX230-9C Product Name Hydraulic Pump
Part Number 440914-00520C 400914-00529 ApplicableBrand Doosan
Warranty Period 6-12 months Condition NEW
Standard or Non-standard Standard Type Guarantee We will inspect the products and send detailed pictures to the buyer for confirmation.
Applicable Industries Mechanical Repair Shops, Retail, Construction, Energy, Mining Shipping Method Sea freight, Air freight, DHL/FEDEX/TNT/EMS
