Excavator Undercarriage Parts Idler Assy 9101204 for Hitachi EX1200-5

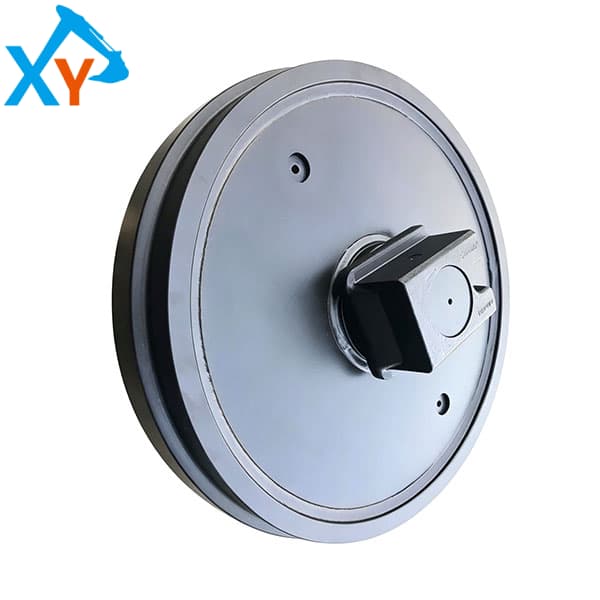

The chassis of this heavy-duty ultra large tonnage mining grade crawler excavator has four wheels with a core idler assembly (Idler Assy/Front Idler), and the Hitachi original core part number is 9101204. This core tension guiding unit is specially designed for deep matching of Hitachi's heavy-duty super mining hydraulic excavator, and is precisely suitable for fully restoring the dismounting walking system of Hitachi EX1200-5, EX1200-5C, EX1200-6 and other 120 ton giant star models on the same platform. The product is based on first principles and is made of high-quality high-strength alloy steel with integral heavy-duty casting and forging combination. The tread and double-sided edges are subjected to fully automatic computer-controlled deep intermediate frequency quenching heat treatment, which gives it the ultimate hardening layer depth and anti cracking physical matrix, seamlessly resisting the extreme instantaneous alternating shear stress and meshing wear under harsh working conditions of giant mines. The physical dimensions of the product packaging are approximately 920mm × 880mm × 420mm, and the overall net weight of a single unit is about 465kg.

"Extreme cleaning and guide groove verification (core pit avoidance): Before assembly, heavy lifting equipment must be used to lift, thoroughly scrape and clean the mud, residue, and rust inside the track frame guide slide, ensuring that the surface of the slide is physically flat and free of deformation pits. If there are micron sized hard foreign objects remaining on the slide or if the gap between the guide plates exceeds the standard, it will directly cause the axis of the guide wheel to deviate during tensioning, leading to shear stress concentration and sudden lightning oil leakage during operation.

High strength bolt torque locking and anti loosening: smoothly slide the guide wheel assembly into the guide groove and naturally connect it with the tensioning cylinder/spring assembly. When fixing the shaft end plate, it is necessary to replace it with original 12.9 grade high-strength fastening bolts (it is strictly prohibited to reuse old parts). It is necessary to use a high torque precision torque wrench, strictly follow the original factory's rated torque specifications for symmetrical and phased uniform locking, and apply special medium high strength thread locking adhesive to the threads."
