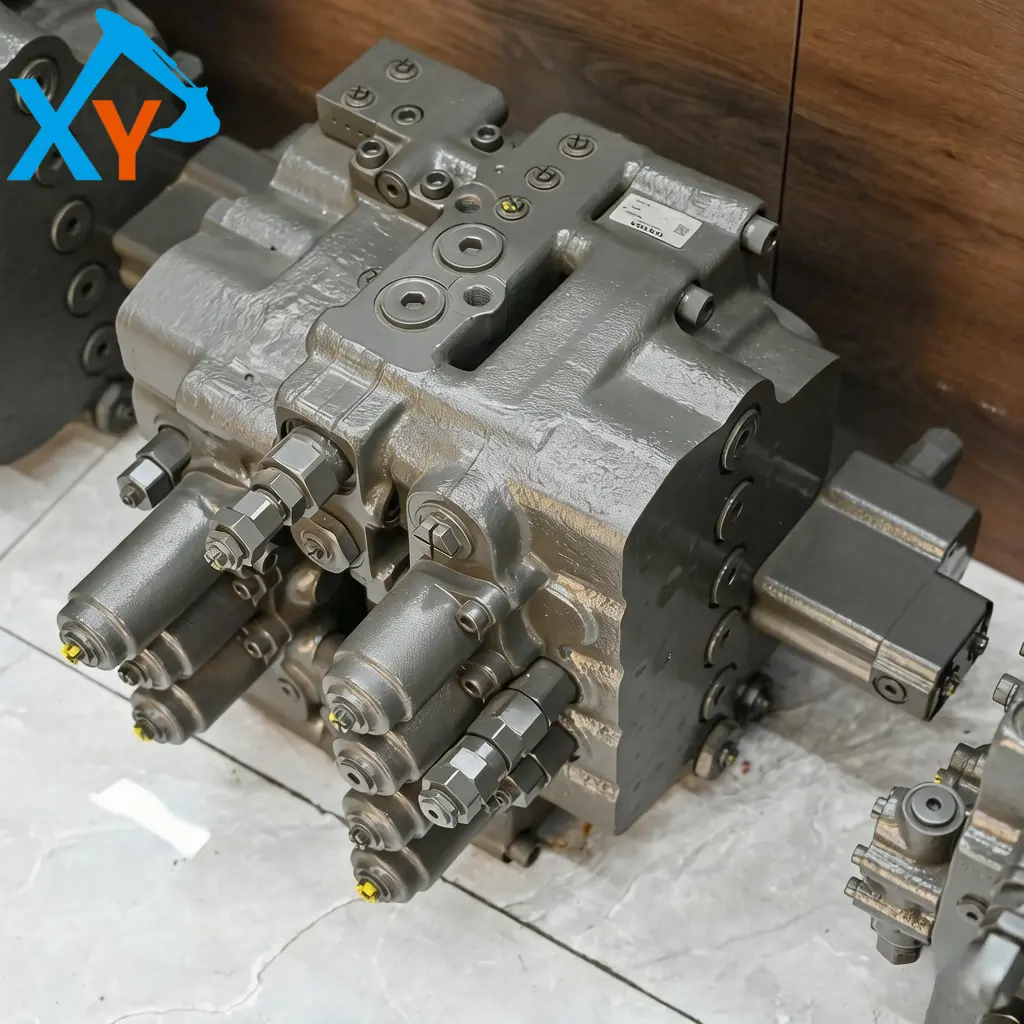

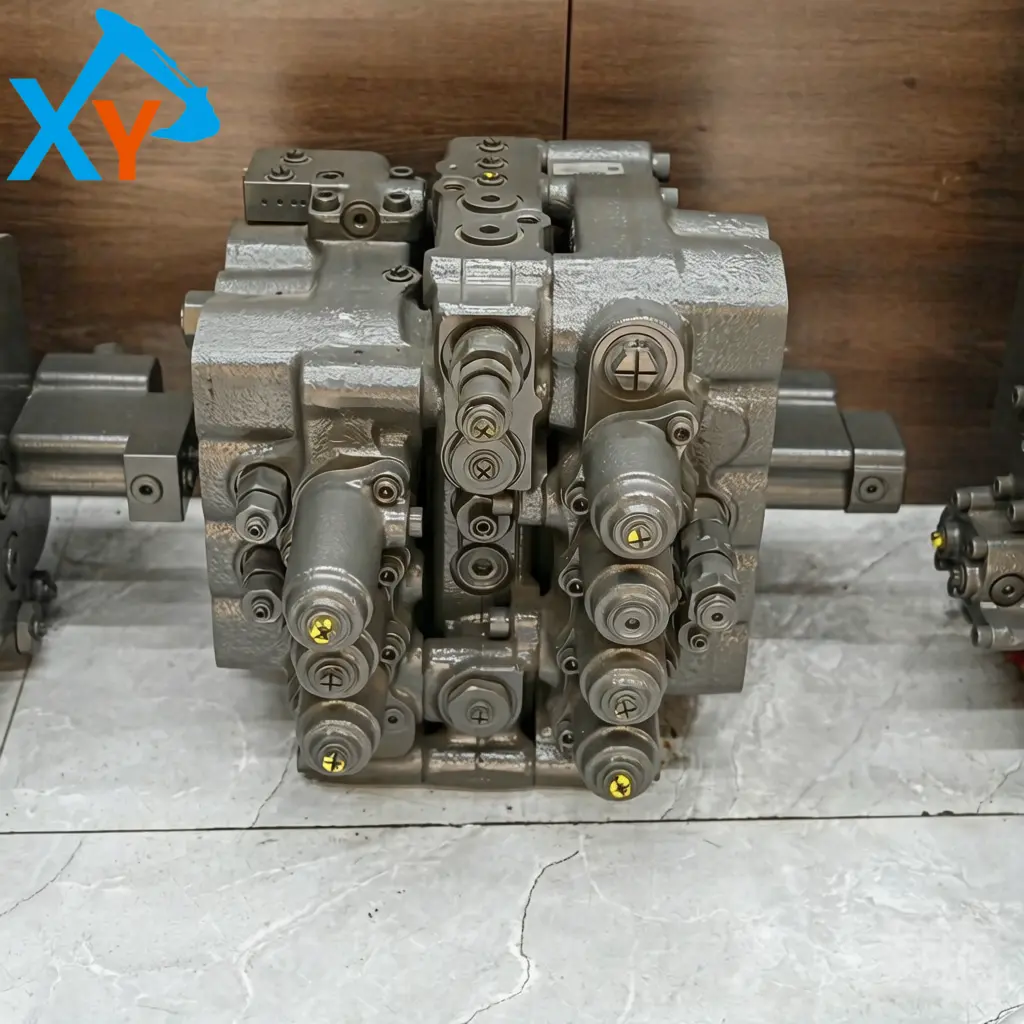

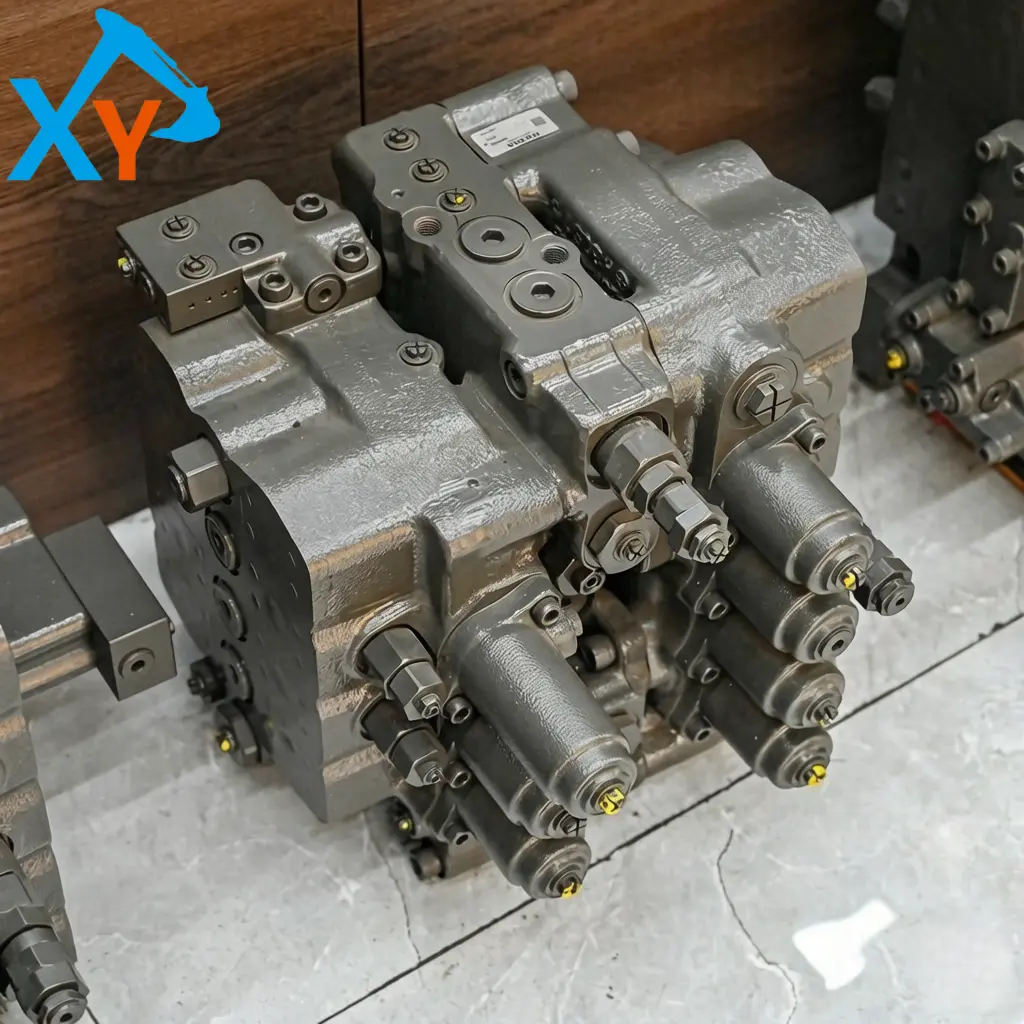

Main Control Valve VOE14541591 for Volvo EC290B Excavator

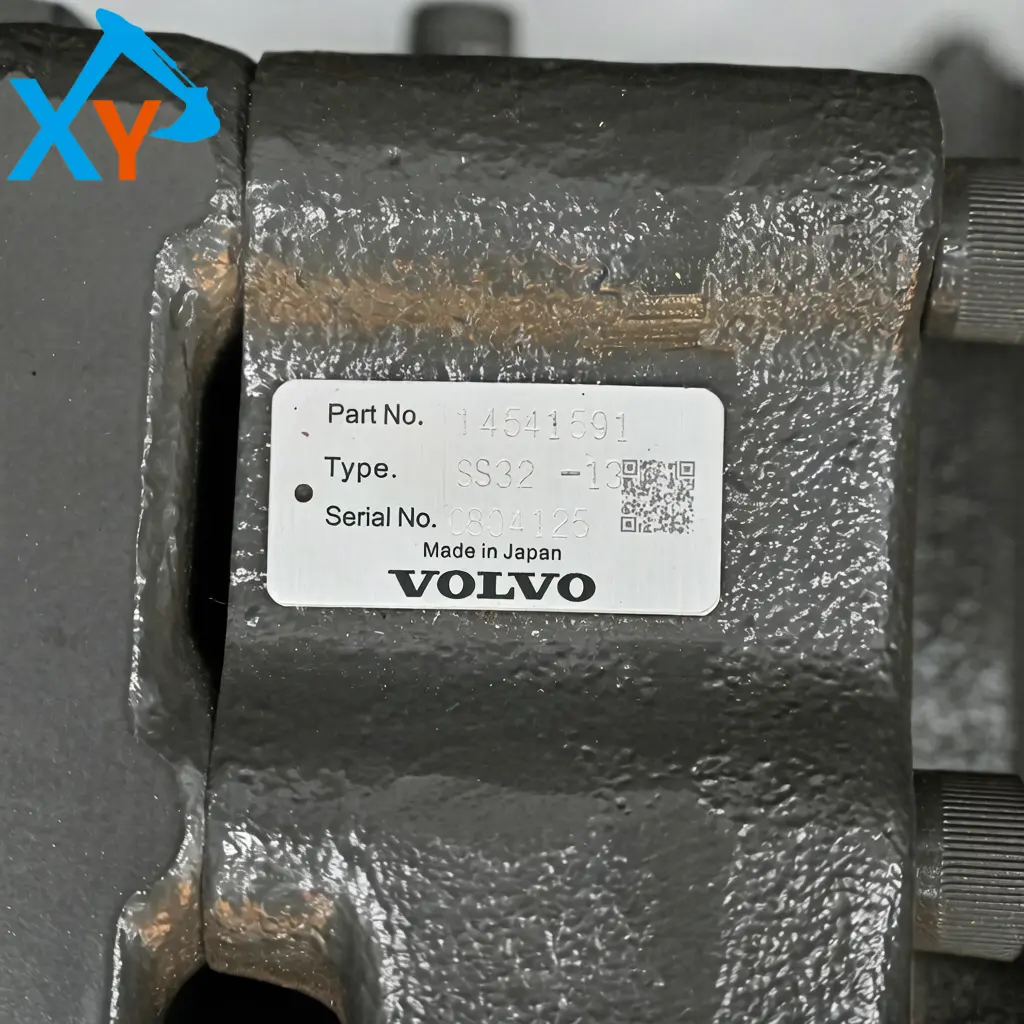

This heavy-duty high-precision multi way control valve assembly (main distribution valve/distributor) has the core original part number VOE14541591. As the core center of fluid power distribution and logic control, this assembly is specially designed for Volvo high-performance excavators, perfectly matching 30 ton main models such as EC290B, EC290C, and FC329C. The product is based on first principles for high-precision design of internal flow channels and induction valve cores, perfectly carrying the high-pressure and high flow loads of Volvo's unique hydraulic system, ensuring absolute certainty of action response. The physical dimensions of the product packaging are approximately 720mm × 510mm × 550mm, with an overall net weight of approximately 165kg. The original factory standard position is precisely aligned.

"Extreme error prevention and dust-free (core pit avoidance): The unpacking and installation environment needs to be treated with noise reduction and dust removal. The distribution of Volvo's main valve pipelines is extremely complex. When disassembling, each conduit and high-pressure oil pipe must be rigidly numbered and marked, and it is strictly prohibited to connect them in a staggered manner to prevent logical disorder or component breakdown.

Symmetrical tightening of torque: The installation bolts of the valve body and high-pressure flange bolts must be tightened in stages and symmetrically cross tightened strictly according to the original factory's specified torque using a torque wrench to prevent local stress from causing slight deformation of the valve body and blockage of the valve core.

Low pressure full stroke exhaust: After installation, the engine must be kept idling for 15-20 minutes for the first ignition. Subsequently, control the working device to perform several full stroke slow reciprocating movements, thoroughly exhaust the circuit air, and gradually apply the working load only after the thermodynamic state is stable."
