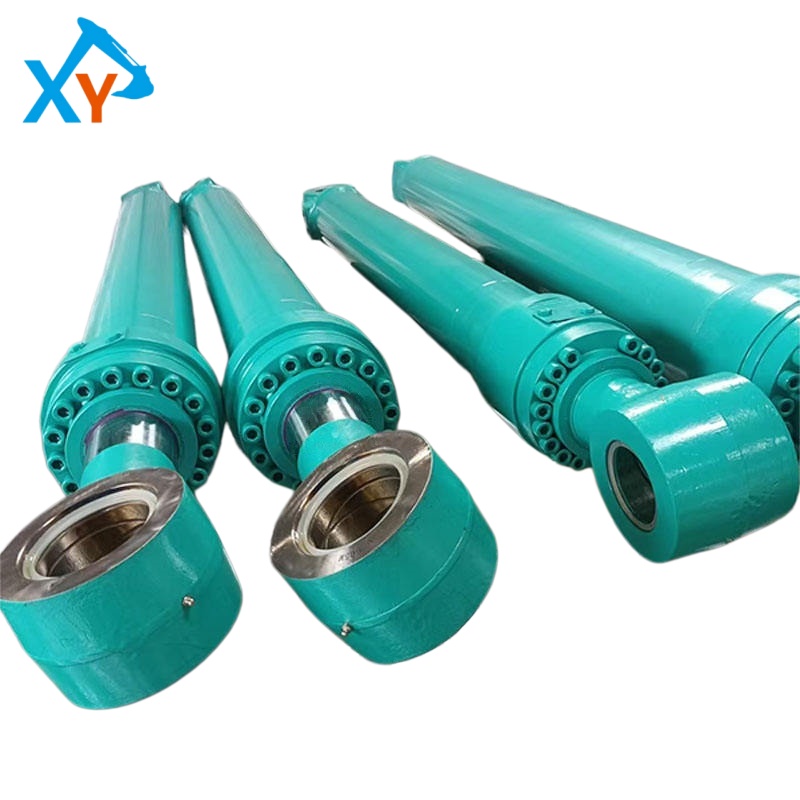

YN01V00112F1 Arm Cylinder for Kobelco SK200-6E

Place of Origin China/Japan
Brand Name LIRACE/Kobelco
Model Number SK200-6E
Minimum Order Quantity 1 PCS
Price Negotiable price
Packaging Details Wooden case or as required
Delivery Time 5-8 Weekdays
Payment Terms Western Union,T/T
Supply Ability 300pcs /Month
15
Basic Parameters & Introduction
The YN01V00112F1 and YN01V00132F1 are premium hydraulic cylinder assemblies engineered as direct OEM replacements for the Kobelco SK200-6E excavator. The YN01V00112F1 is the bucket cylinder, while the YN01V00132F1 is the arm cylinder. Both cylinders feature high-frequency surface-hardened piston rods with hard chromium plating (hardness up to 55 HRC) for superior wear resistance, and cylinder tubes constructed from 25Mn steel for excellent durability. Key Specifications: Bucket cylinder — rod diameter Ø80 mm, tube diameter Ø120 mm; Arm cylinder — rod diameter Ø95 mm, tube diameter Ø135 mm. Premium NOK and SKF seals are utilized to enhance sealing performance and prevent leakage. Compatible with SK200-6E, SK200-6ES, SK210LC-6E and related models.
15
Maintenance Tips
Proper maintenance is essential to maximize cylinder service life and ensure operational reliability. Daily (Every 10 hrs): Visually inspect the cylinders for external oil leaks at rod seals, tube welds, and hose fittings; protect the piston rod surface from bumps and scratches that may damage seals; check all mounting bolts for tightness. Every 1,000 hrs: Perform detailed inspection of the piston rod surface for scoring, pitting, or chrome flaking; regularly clean sediment on the dynamic seal dust ring and exposed piston rod surface; retighten all high-pressure flange bolts and pipe clamps to specified torque values. Major Overhaul (Every 4,000–8,000 hrs): Replace all internal seals, O-rings, and wear rings using OEM-grade seal kits. Frequently lubricate connecting parts to prevent corrosion or abnormal wear. Always refer to the Kobelco SK200-6E Operation & Maintenance Manual for serial-number-specific intervals.
15
Installation Tips
Strict adherence to installation protocols is mandatory for safety and reliability. Mandatory Replacements: All gaskets, O-rings, backup rings, and cotter pins must be replaced with new components—never reuse old sealing elements. Surface Preparation: Thoroughly degrease and clean all mating flange surfaces and pin bore interfaces to eliminate contaminants before fitting. Torque Application: Tighten all mounting bolts and split flange clamps in a cross-pattern sequence in 3 incremental stages to Kobelco-specified torque specifications. Uneven torque distribution will cause flange distortion and premature seal failure. System Bleeding: After installation, perform a test run of full extension and full contraction for 3–5 cycles to exhaust air from the system and preheat each circuit, effectively preventing gas explosion in the cylinder block that may damage seals and cause internal leakage. Ensure all hydraulic hoses are routed without kinking and securely fastened with OEM-spec clamps.
Brand China/Japan Brand Name LIRACE/Kobelco
Model SK200-6E Product Name Arm Cylinder Bucket Cylinder Assembly
Part Number YN01V00112F1   YN01V00132F1 ApplicableBrand Kobelco
Warranty Period 6-12 months Condition NEW
Standard or Non-standard Standard Type Guarantee We will inspect the products and send detailed pictures to the buyer for confirmation.
Applicable Industries Mechanical Repair Shops, Retail, Construction, Energy, Mining Shipping Method Sea freight, Air freight, DHL/FEDEX/TNT/EMS
